Updated charts on Germany’s electricity mix from 1990 through 2012 show renewables’ steady increase, and the continued decline of gas and nuclear.

share
Print Friendly, PDF & Email

Apparently my article last October documenting the growth of renewables in Germany while nuclear generation continues to decline got under the skin of pro-nuclear bloggers.

So at the request of a reader, I am updating my charts on the electricity mix in Germany from 1990 through 2012. These charts are from public information, easily accessible with rudimentary German.

First, the total mix.

RTEmagicC_German-Electricity-Mix-1990-2012_02
As can be seen, renewables continue their steady increase. No surprises there. Hard coal arrests its decline and there’s a slight uptick in brown coal generation.

RTEmagicC_Germany-2012-Total-Generation_01

Total generation of electricity in Germany remains relatively constant at 617 TWh in 2012.

RTEmagicC_Germany-Coal-Generation-2012_01

In 2012 there was a slight uptick in coal-fired generation, mostly from brown coal. Generation from hard coal increased from 112 TWh to 118 TWh, about as much as the 117 TWh produced in 2010. Generation from brown coal increased from 150 TWh in 2011 to 158 TWh in 2012. Total coal-fired generation has increase about 25 TWh from a low of 254 TWh at the height of the Great Recession in 2009.

RTEmagicC_German-Gas-Fired-Generation-2012_01

Despite a steady increase in gas-fired generation from the early 1990s through 2008, generation dropped dramatically in 2012 following a more gradual decline in 2011. Critics of the nuclear phase-out have charged that Germany is simply replacing nuclear with gas-fired generation. Apparently that’s not the case. Despite a slight increase in total generation in 2012, gas-fired generation dropped from 83 TWh in 2011 to 70 TWh. Gas-fired generation in Germany is now at the level last recorded in 2005 during the boom years prior to the Great Recession.

RTEmagicC_German-Net-El-Exports-2012_01

Now on to the oft-repeated but never substantiated charge that Germany may be phasing out its nuclear plants but it is just turning around and importing nuclear-generated electricity from France. There was concern that German electricity exports would continue their fall from 2011, but that appears unwarranted. German exports of electricity surged in 2012. Net exports reached 23 TWh in 2012 for nearly 4% of total generation.

RTEmagicC_German-Nuclear-Generation-2012_01

German nuclear generation continues to fall. For the first time in at least two decades nuclear generation fell below 100 TWh. Nuclear generation is now well below generation by new renewables (wind, solar, and biomass).

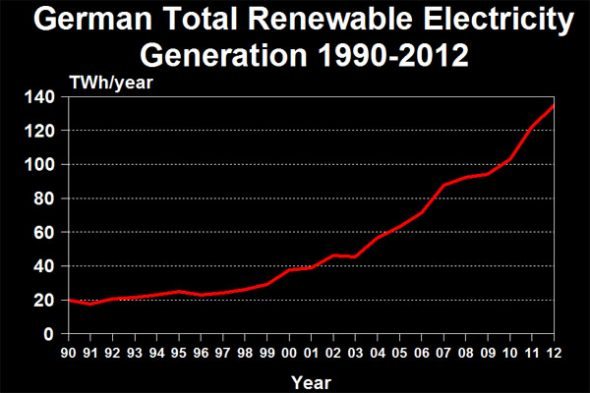

RTEmagicC_German-RE-Total-2012_02

Total renewable generation grew steadily to about 135 TWh, 35 TWh more than that from nuclear generation. Total renewable generation includes existing hydro about 20 TWh per year depending upon rainfall.

RTEmagicC_German-New-RE-2012_02

New renewable generation continued its remarkable growth in Germany in 2012, reaching nearly 115 TWh. Most growth has taken place since the country introduced a modern system of feed-in tariffs in the year 2000. New renewables now compares with the generation from hard coal and exceeds that from natural gas, nuclear, oil, and existing hydro.

RTEmagicC_German-RE-by-Type-2012_01

Solar photovoltaics (solar PV) continued its meteoric growth in 2012. Solar PV generated 29 TWh in 2012 or nearly 5% of total generation. Wind accounted for a little more than 7% of generation and biomass provided nearly 6% of generation.

RTEmagicC_German-RE-Percent-Supply-2012_01

Renewable generation provided nearly 22% of total generation in 2012. Within a few years, renewables will account for one-fourth of all German electricity generation. New renewables accounted for nearly 19% of total German generation in 2012.

These comparisons are based on total generation and may not compare to other reports comparing the contribution of renewables to electricity consumption, 594 TWh.

This article was originally published on Paul Gipe’s blog WindWorks.org. Reproduced with permission
